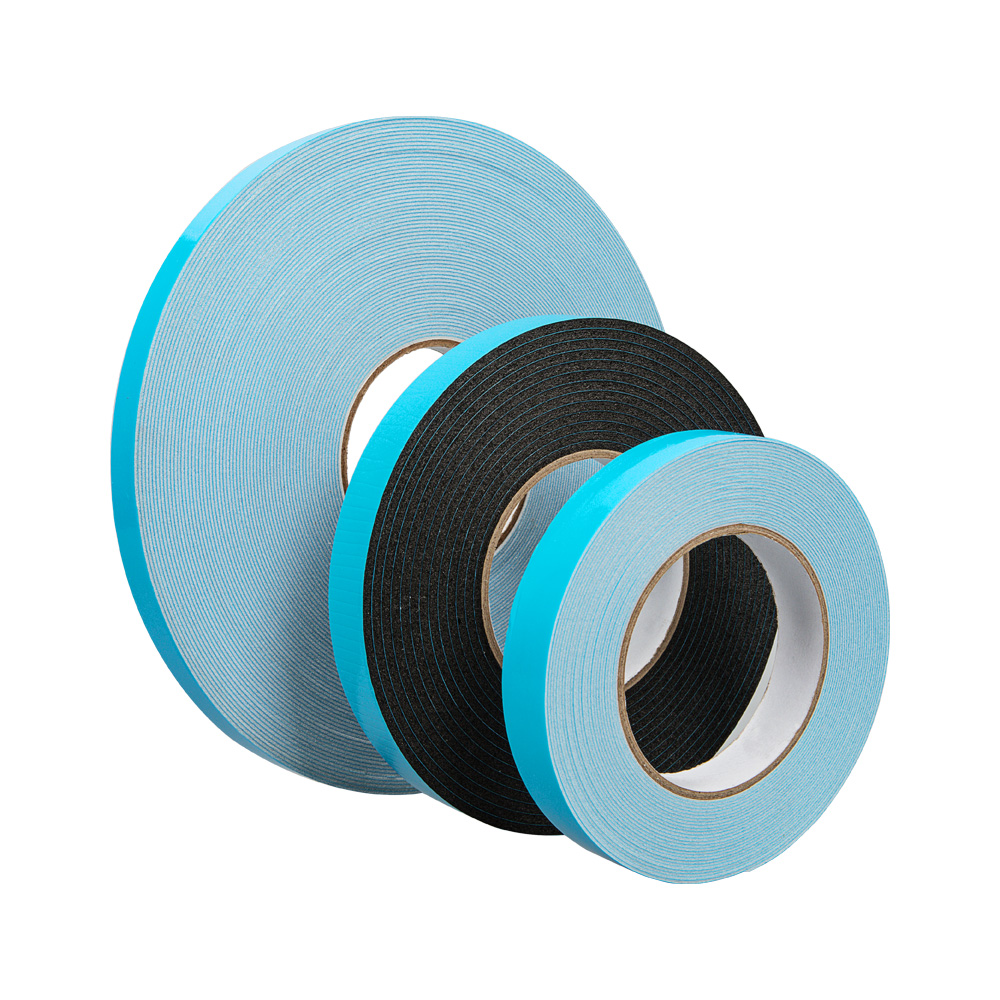

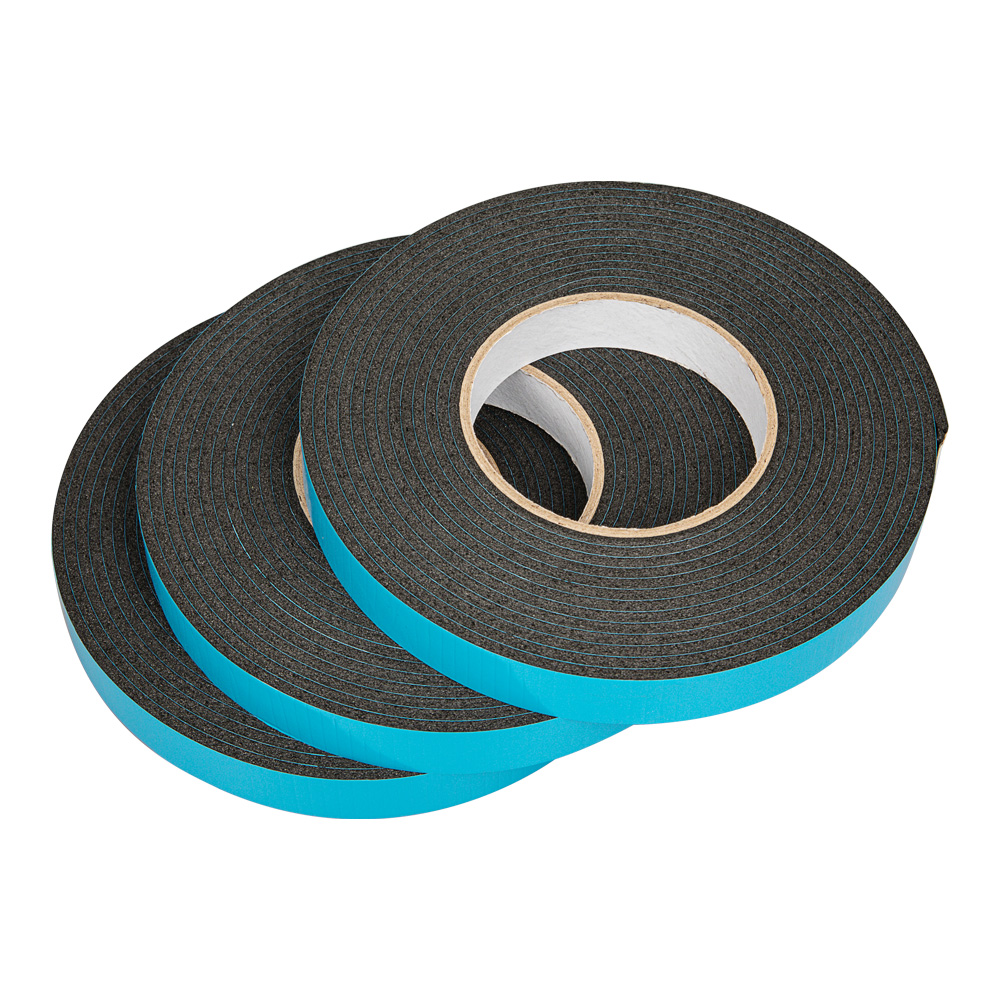

Long Holding Power Automobile Shockproof Usage PE Foam Grip Tape For Car Shockproof
Product Description
Automobile Shockproof Usage PE Foam Grip Tape base on PE backing material available , coating on both sides with strong Solvent Acrylic adhesive or hot melt adhesive and with PE plastic film/ Yellow silicon paper/white silicon paper/glassine silicon paper as release liner.
Main applications
Automobile Shockproof Usage PE Foam Grip Tape is designed for adhering to the irregular surface, fixing the nameplate, auto-mirror and often used in the automobile industry such as door sealing strips, pedal and metal boards. Specially suitable for the fixation of inner structure in the glass combination like the glass curtain wall and soundproof wall etc; also used to stick the car decorations and for the combination orientation of sound source inside the voice box.
Main Features
1) Moderate thickness, good softness, suitable for different use space
2) Good flexibility, prevent components moving when shaken
3) Good holding power, good adhesion to the rough complex surface.
4) Good resistance to temperature and solvent; comply with ROHS environmental standard
5) Surface release material: white paper /other colored release film
6) Backing material / color: Black /White PE foam
7) Adhesive: light white solvent pressure-sensitive adhesive
Technical parameters
| Item No. | 80°Stripping Resistance | Holding Power(hours) | Tensile strength | Breaking Elongation | Temperature resistance | Backing material thickness |
| HX-2010 | ≥10 | ≥12 | ≥15N | 100% | -10-80°C | 50um±15um |
| HX-2015 | ≥10 | ≥12 | ≥20N | 100% | -10-80°C | 100um±15um |
| HX-2020 | ≥10 | ≥12 | ≥30N | 150% | -10-80°C | 200um±15um |
Physical parameters
| Item | Long Holding Power Automobile Shockproof Usage PE Foam Grip Tape For Car Shockproof |
| Adhesive | Solvent adhesive/hot melt adhesive/Acrylic |
| Color | Blue |
| Backing | PE Foam |
| Thickness | 0.5mm,1mm, 1.5mm, 2mm 2.5mm,3mm,6mm ect |
| Glue Tape | Solvent adhesive | Hot melt adhesive &Acrylic |
| Tack | ≥8 # | ≥18 # |
| Holding power | ≥12hrs | ≥3hrs |
| 180°peeling | ≥20N/25mm | ≥6N/25mm |
| Temperature resistance | 80°C | 60°C |
| Tensile strength | 20N/25mm | 10N/25mm |
| Elongation % | 100% |
Pre-sale:
OEM: 100pcs/design, pls send us Artwork in PDF,AI,CDR,PSD,etc, all be ok.
Your inquiry will be replied in 24hours
Free samples are available,send in 3 days.
Shipping:
Delivery: about 15days after confirming artwork.
Small order: By exress DHL/FEDEX/TNT/UPS, etc
Big order: By Sea or Air.
After-sale:
Our expert customer service staff will inform you production and shipping details timely.
If has any complain, pls call us at: +86 13826936114.
1.Payment: 50% T/T DEPOSIT PAYMENT IN ADVANCE, BALANCE AGAINST COPY OF B/L, WESTERN UNION, L/C.
2.Production Lead Time: 10 - 20 DAYS AFTER DEPOSIT PAYMENT.
3.Shipping Methods: OCEAN FREIGHT.
4.FOB Shipping port: SHENZHEN, MAINLAND CHINA.
5.If you want to deal with EXW/CIF/CNF term instead of FOB, please specify. Otherwise, FOB price will be quoted under inquiry.
Finished-products package: Each rolls separated by release paper and put in plastic bag, then to be boxed.
Jumbo roll package:Package by kraft paper
We can make other package as your requirement, normally our quotation will contain the common package. If you need your own packages, you'd better advise your requirement ahead of time for an accurate quote.
The common used carton box specification:
| Carton box category | Length * Width * High |
| normal | 55cm * 44cm * 36cm |
| normal | 55cm * 44cm * 32cm |
| normal | 55cm * 44cm * 26cm |
| normal | 39cm * 39cm * 32cm |
| normal | 39cm * 39cm * 35cm |
| normal | 51cm * 21cm * 30.5cm |
| HX strengthen box | 28cm * 23cm * 35.5cm |
| Hardened case | 40cm * 40cm * 35cm |
| Hardened case | 48cm * 48cm * 35cm |
